Per states texture
First of all, to better understanding this tutorial you must read first General Items because I will suppose you already know some basic stuff of Texture pack, after telling this, let's begin.
Commentary
As I said, I'll suppose you know basic stuff, so, this tutorial will only focus on the bow or items with per states texture itself, I won't explain how to create a texture pack, where the items go, etc etc, just the state mechanic itself.
Bow
Texture
First of all, if you pick up a vanilla bow and draw it you will see it has 4 states, so, we will need 4 textures. Let's do it (how to make the texture is explained in General Items)

So we have the texture, now let's add it to the bow.
Json
The admin one
{
"parent": "item/generated",
"textures": {
"layer0": "item/bow"
},
"display": {
"thirdperson_righthand": {
"rotation": [ -80, 260, -40 ],
"translation": [ -1, -2, 2.5 ],
"scale": [ 0.9, 0.9, 0.9 ]
},
"thirdperson_lefthand": {
"rotation": [ -80, -280, 40 ],
"translation": [ -1, -2, 2.5 ],
"scale": [ 0.9, 0.9, 0.9 ]
},
"firstperson_righthand": {
"rotation": [ 0, -90, 25 ],
"translation": [ 1.13, 3.2, 1.13],
"scale": [ 0.68, 0.68, 0.68 ]
},
"firstperson_lefthand": {
"rotation": [ 0, 90, -25 ],
"translation": [ 1.13, 3.2, 1.13],
"scale": [ 0.68, 0.68, 0.68 ]
}
},
"overrides": [
{
"predicate": {
"pulling": 1
},
"model": "item/bow_pulling_0"
},
{
"predicate": {
"pulling": 1,
"pull": 0.65
},
"model": "item/bow_pulling_1"
},
{
"predicate": {
"pulling": 1,
"pull": 0.9
},
"model": "item/bow_pulling_2"
},
{
"predicate": {
"custom_model_data": 3
},
"model": "item/bow/custom_bow"
},
{
"predicate": {
"custom_model_data": 3,
"pulling": 1
},
"model": "item/bow/custom_bow_pulling_0"
},
{
"predicate": {
"custom_model_data": 3,
"pulling": 1,
"pull": 0.65
},
"model": "item/bow/custom_bow_pulling_1"
},
{
"predicate": {
"custom_model_data": 3,
"pulling": 1,
"pull": 0.9
},
"model": "item/bow/custom_bow_pulling_2"
}
]
}
The sub admin ones
1th
{
"parent": "item/handheld",
"textures": {
"layer0": "item/bow/normalstate"
}
}
2nd
{
"parent": "item/handheld",
"textures": {
"layer0": "item/bow/1state"
}
}
and so on..
Let's test it
After doing everything, save the jsons, save the texture in the correct folders, and give it to yourself in game + put the texture pack on.

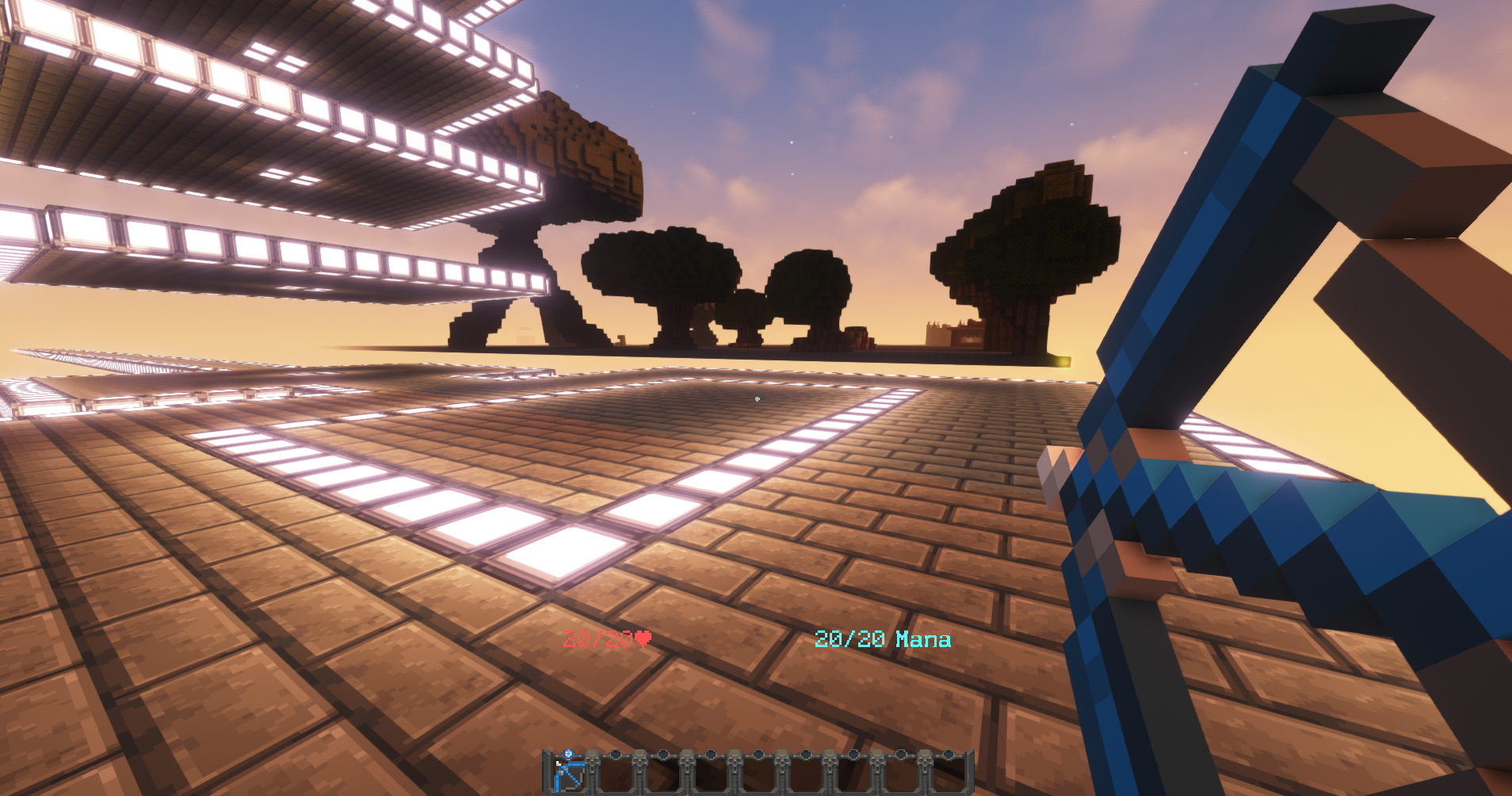

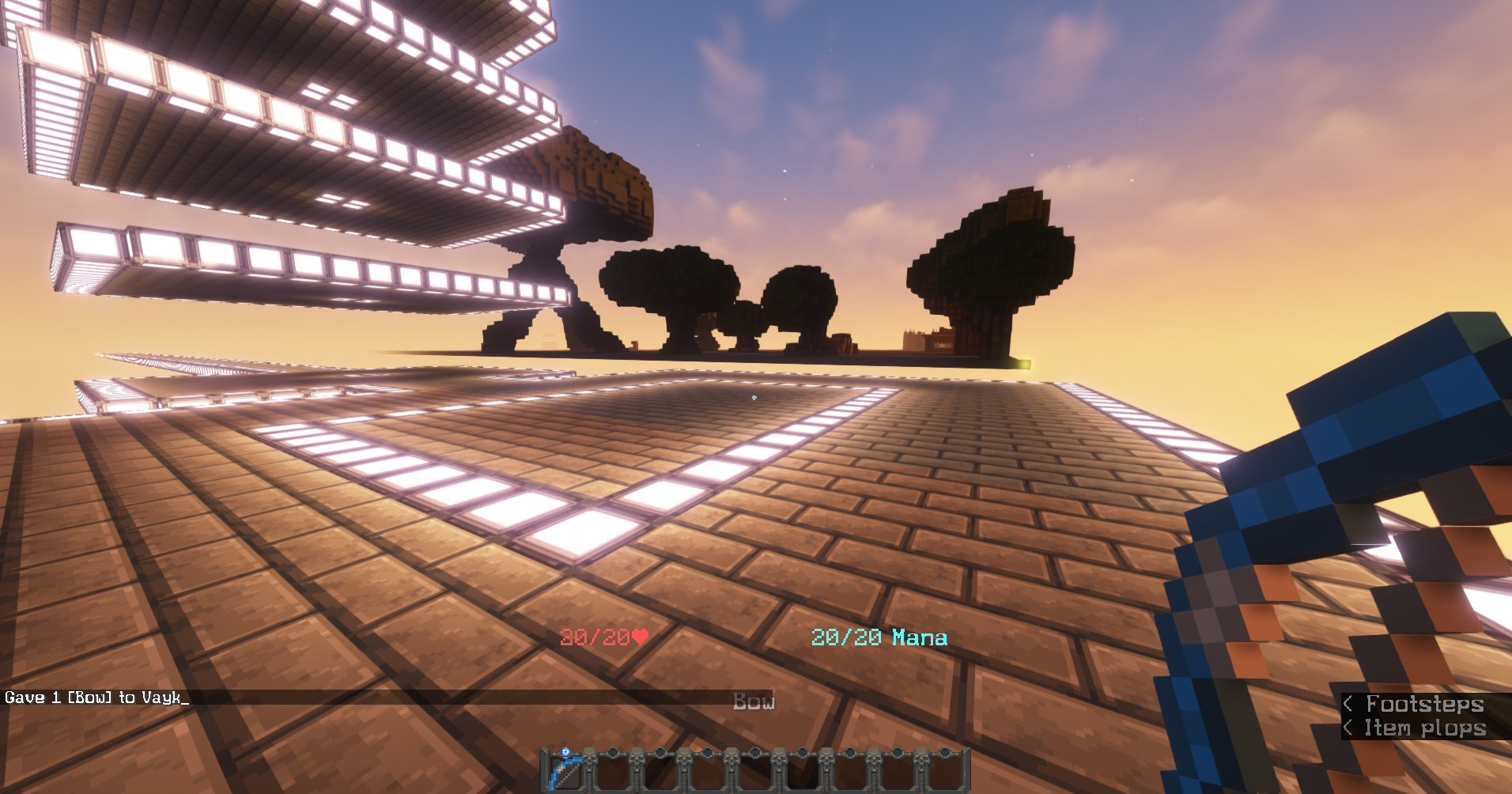

Pulling states is working?

That's all, if have any question feel free to ask in the discord. Have a nice day
Shield
This is the default json shield item + a text with the custom model data part
{
"parent": "builtin/entity",
"gui_light": "front",
"textures": {
"particle": "block/dark_oak_planks"
},
"display": {
"thirdperson_righthand": {
"rotation": [ 0, 90, 0 ],
"translation": [ 10, 6, -4 ],
"scale": [ 1, 1, 1 ]
},
"thirdperson_lefthand": {
"rotation": [ 0, 90, 0 ],
"translation": [ 10, 6, 12 ],
"scale": [ 1, 1, 1 ]
},
"firstperson_righthand": {
"rotation": [ 0, 180, 5 ],
"translation": [ -10, 2, -10 ],
"scale": [ 1.25, 1.25, 1.25 ]
},
"firstperson_lefthand": {
"rotation": [ 0, 180, 5 ],
"translation": [ 10, 0, -10 ],
"scale": [ 1.25, 1.25, 1.25 ]
},
"gui": {
"rotation": [ 15, -25, -5 ],
"translation": [ 2, 3, 0 ],
"scale": [ 0.65, 0.65, 0.65 ]
},
"fixed": {
"rotation": [ 0, 180, 0 ],
"translation": [ -4.5, 4.5, -5],
"scale":[ 0.55, 0.55, 0.55]
},
"ground": {
"rotation": [ 0, 0, 0 ],
"translation": [ 2, 4, 2],
"scale":[ 0.25, 0.25, 0.25]
}
},
"overrides": [
{"predicate":
{"blocking":1},
"model":
"item/shield_blocking"},
{"predicate":
{"custom_model_data":2},
"model":
"item/shield/shield2"},
{"predicate":
{"custom_model_data":2,
"blocking":1},
"model": "item/shield/shield2_blocking"}
]
}
This will make the shield to apply the shield2 item state as default state with CustomModelData 2 and if its CustomModelData 2 and blocking, the shield2_blocking item state will be applied.
shield2 and shield2_blocking are json of items, you can either retexture the same shield or create one custom with external programs.
